Inverter is a electrical appliance which is charged with electricity and the charge is used later, in the absence of electricity.
Same is what you are going to create!
You need :
• A wooden Base
• Rechargeable cell in accordance to your use, say 6V, 2100 mAh
(May be less or more)
• Electric Socket
• Nokia Charger Port
• Connecting Wires
• Switch

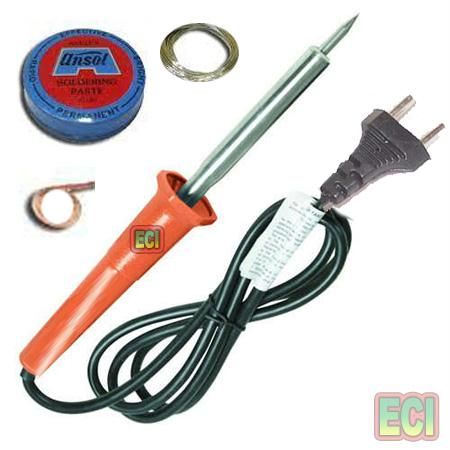

• Soldering Iron and its components
WHAT TO DO?
→ Take the box and fix the cell at left side.
→ From both + and - terminals, solder the charger port (red to + and black to -)
→ Connect a LED to both points of the charger port.
→ Again, solder two wires from each terminal. Now, one piece of wire is + and another is -.
→ In the socket, there are two metallic pins. Connect both wires to them (Any wire to any pin).
HOW TO CHARGE ?
In the port, connect the Nokia Charger with electricity.
Here's a diagrammatic circuit for your convenience.
If there is/are any confusion(s) related to this project, you are invited to drop a comment!
